RC Car Motor Spins but Wheels Won’t Turn – What to Check
RC car motor spins but wheels wonโt turn is a problem that tends to look worse than it is. The motor whines, the car doesnโt move, and itโs easy to start blaming the ESC or the battery. A motor that spins freely with no resistance points somewhere else, toward the parts that are supposed to carry that spin down to the tires.
Disconnect the battery before you touch anything. Then set the car on a stand or a small box so the wheels are off the ground. This keeps it from taking off the moment you plug it back in to test.
How Iโd Check the Pinion and Spur Gear
Iโd start with the pinion, the small gear on the motor shaft. Itโs held on by a tiny set screw. If that screw has backed off, or never sat on the flat spot of the shaft, the pinion can spin freely while the shaft turns underneath it. The motor sounds fine, but nothing downstream gets the power.
Next to it is the spur gear, the larger gear the pinion drives. Plastic spur gears can lose teeth, sometimes in just one section, and a pinion will spin right past the gap. Turn the gear by hand and look at the teeth all the way around, not just the part facing you.
If the teeth look fine, check the mesh. A motor mount that has loosened and slid back can leave the two gears barely touching. There should be a very small amount of play between them, but not a visible gap.

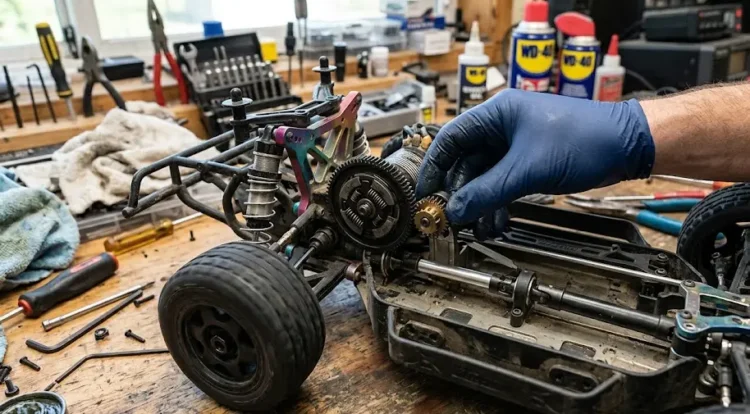

Could It Be the Slipper Clutch?
Many trucks and buggies have a slipper clutch on the spur gear, though it depends on the model, so a parts diagram is worth checking. A slipper thatโs slightly loose can let the car creep forward on light throttle and slip as soon as you ask for more. A worn or oily one can slip completely.
What If the Gears Look Fine?
If the pinion and spur gear turn together, Iโd move further back. Shaft-driven cars have a center driveshaft and dogbones running out to the wheels. A dogbone that has popped out of the diff outdrive or the wheel hex can look fine from above, but that wheel is no longer connected. A sheared or missing drive pin can cause the same problem.
Turn the spur gear by hand and watch each wheel. A wheel that stays still while the others turn could point to a popped dogbone, a missing pin, or a damaged differential. Belt-driven cars add one more possibility: a belt that has snapped or jumped off a pulley.
The wheel itself deserves a look too. On cars that use a pin through the wheel hex, a sheared pin lets the axle turn inside the wheel. Everything can look attached, and the wheel nut may still feel tight.
Toy-grade cars with a sealed plastic gearbox are a different case. A stripped gear inside can cause this, and the box usually opens with a few screws. Whether a repair makes sense depends on what the car cost and whether replacement parts are available.
Plastic gears tend to wear first on many cars. If the spur gear turns out to be the problem, take a close look at the pinion too, since chewed-up teeth on one often mean the other has taken some damage.
